Worked Example

Goal

The December 2022 minutes for the CS Curriculum Committee say that CS346, a recently created course, should be added to “the Applications list of the Software Engineering Specialization”. The current list contains CS343, CS348, and CS349.

Check the Calendar

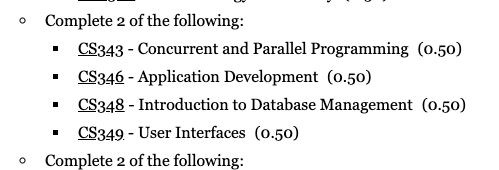

The 2025/26 Calendar shows this change:

Figure out which calendar actually made the change by looking at the archives. In this case, the change appears in 2025/26 and 2024/25 but not in 2023/24. And there’s more change than we found in the UAPC minutes.

Once you gain experience, it’s probably worth poking around at this point. Has the change already been made?

Get set up

Do you have an existing branch that’s appropriate for this work?
- How much work to put into a branch is a matter of judgement. You probably don’t want a new branch for every small change. On the other hand, you don’t want to put days and days of work across many different plans into the same branch. Make a branch for each group of related changes (eg one branch for CS changes, one for business program changes, …).
- Yes: Check it out in SourceTree (i.e. double click on that branch name)
- No:
  1. Check out the main branch in SourceTree. Make sure you’re up to date; if not, pull.
  2. Make a new branch for your work.

Find a student

There are several options for finding a student:

If you’re responding to a user reporting an error, insist that they send you the ID of a student illustrating the error.
If you’re starting with curriculum documentation, check out the oat/oat-plandefs/sampleStudents directory and explore the CSV files it contains. This is produced by querying all the plan codes and getting up to four random students for each one. Priority is given to those who have graduated or are nearly ready to graduate. It only looks at students with a requirement term of 1229 or later. Much of this is easily changed; if I didn’t get it correct, let me know.
Run query 1156 (brand new as of 2025-06-26!).

Extract one of the students using da-extract-transcript, for example:

da-extract-transcript 20769439 > transcripts/math/bac/cs/se/csbsehc-1249-grad.json

This assumes you have already used cd to change to oat/oat-plandefs/test. Use command completion to make sure you get the path correct.

Dissecting the parts of this command, left to right:

da-extract-transcript is the name of the program to run.
20769439 is the student id of the student for whom we want to extract a transcript.
> says to redirect the program’s output into a file.
transcripts/math/bac/cs/se/ is the directory where the transcript file will be placed. It should correspond to the plan group for the plan code whose definition we’re modifying.
csbsehc is the plan code whose definition we’re modifying.
1249 is the first term with the new modifications.
grad is an identifier for this particular test. Common ones are grad (a student that has graduated), and syntest (a “synthetic test”, that is, one where we made modifications to a transcript).
.json is the kind of data in the file.

Modify the transcript, as required

Edit the transcript with code transcripts/math/bac/cs/se/csbsehc-1249-grad.json.

Change the requirement term for both the program and the plan to 1249.
Find an existing course (perhaps CS349) and change it to CS346, the course we’re going to be adding.

Run the test

The first time you run a test on a new transcript, you’ll get a warning that the expected file does not exist and an empty file has been created:

oat3 test: da-run-tests transcripts/math/bac/cs/se/csbsehc-1249-grad.json
1 tasks
Progress:..   1
FAILED: /Users/oat3/oat/oat-plandefs/test/expected/math/bac/cs/se/csbsehc-1249-grad.txt does not exist; created empty file.
Passed: 0;  Failed: 1;  Error: 0
Elapsed Time:  1.1 seconds
oat3 test:

The output of the test will have been placed in actual/math/bac/cs/se/csbsehc-1249-grad.txt. Take a look at that with more or look at the html version with open output/csbsehc-1249-grad.html. I usually look at the html.

oat3 test: more actual/math/bac/cs/se/csbsehc-1249-grad.txt
20769439        r2habibi        CSBSEHC   PartiallySatisfied
-   audit 20769439 "Habibi, Rodin" {
-      plan CSBSEHC "Comp Sci/Softw Eng Opt, BCS HC" req=1189 cal=1189 using all passedCourses {
√         minAverage(MAV, CSBSEHC, 60)
√         9 of "CS core"  {
√            1 from ^CS_1[134]5: CS_135
√            1 from ^CS_1[34]6: CS_136
...

The top of the audit says that effectively the 2018/19 calendar was used. That makes sense, because we haven’t made our changes yet.

Find the include file(s) that needs updating

There are two approaches:

Poke around in the plan definition files, starting with the student’s plan. In this case, that’s uw/u/math/bac/cs/se/CSBSEH-1179.plan; there’s another for CSBSEHC. In this case, that’s the file that needs updating. In other cases, you might need to look in some include files.
Run degreeAudit --transcript transcripts/math/bac/cs/se/csbsehc-1249-grad.json --pprint withIncludes Look through the output to find the rules that need changing. The name of the include file will be above it (but not necessarily the closest one). It might also be helpful to run the same command with --pprint includesOnly. Look at the file names in comments and proceed by process of elimination.

Open the plan files in the editor (code uw from the oat-plandefs directory) and navigate to the file in question. Verify that’s the correct one.

Create a new version of that file in the same directory

Make a copy of the file. Give it the same name but with a term corresponding to the year of the calendar. In our case, 1249.

Make the required changes:

all of {
    1 of {
        ^BET_360
        ^BET_420
        ...
    }
    2 of { ^CS_343 ^CS_346 ... }
    2 of {
        ^CS_442
        ^CS_444
        ...
    }
    ^CS_445 + ^ECE_451
    ^CS_446 + ^ECE_452
    ^CS_447 + ^ECE_453
}

On the other hand…

Observe that CSBSEH-1179.plan and CSBSEHC-1179.plan are nearly identical and both need the same change. This is a job for an include file!

Create a new include file in the same directory, seOpt-1179.plan.
Copy the all of "CS courses" { ... } into it. Perhaps give “CS courses” a better name: “SE option”.
Replace that requirement in CSBSEH-1179.plan and CSBSEHC-1179.plan with include(seOpt, uw.u.math.bac.cs.se).
Create a new include file for the new requirements, seOpt-1249.plan. Put the above requirements in it.

Test/review your work

Run da-run-tests transcripts/math/bac/cs/se.

The existing tests should still pass. If they don’t, figure out why! It could be that we buggered up the plan definitions. It could also be that the new definitions are equivilent to the old ones but not identical, in which case the expected output of the test needs to change.
The new plan will still fail because we haven’t said what the test should expect. Take a really good look at the HTML output.
- Does it look like this student was evaluated correctly?
- Does the entire collected definition look correct and match the calendar?
- Is there anything you could do to improve the readability?
  - Add labels? The UAPC minutes use the label “Foundations” for the CS_44[567] courses and “Applications” for some of the others.
  - Are there places where a different way of specifying a course set would be more readable?
  - Are there places where a named set of courses might be more appropriate?
Oops… There is an additional constraint in the calendar: “Students may use no more than one of CS453 or CS459.” How can we code this?

When you’re happy with the test results, copy the “actual” file to the same place in “expected”:
cp actual/math/bac/cs/se/csbsehc-1249-grad.txt expected/math/bac/cs/se/csbsehc-1249-grad.txt (from the test directory).

Rerun the test. It should pass.

Commit your work

In SourceTree, commit your work to the branch you created. Consider pushing it to git.uwaterloo.ca as a backup or to let someone else download it to test, review, or comment on it.
