Specifications: Broadcom ModemXtreme V.92 PCI Modem User's Guide

• Data Modes:
  • ITU-T V.92/V.90 data rates (56kbps to 28kbps)
  • ITU-T V.34 (33.6kbps to 2.4kbps)
  • ITU-T V.32bis, V.32
  • ITU-T V.22bis, V.22, V.23 (Minitel), Bell 212A and Bell 103
  • ITU-T V.8, V.8bis
  • ITU-T V.42 LAPM and MNP 1-4 error correction
  • ITU-T V.44/V.42bis and MNP Class 5 compression
  • Extended AT command set (superset of TIA-602)
  • ITU-T V.250 for PC99/PC2001 compliance
  • ITU-T V.251 for H.324 conferencing and PC99/PC2001 compliance
  • ITU-T V.80 Synchronous access mode supports H.324 conferencing
• Fax Modes:
  • ITU-T V.34, V.17, V.29, V.27ter, V.21 Ch 2, Group 3 and TIA/EIA Class 1, 2, 2.0 FAX AT commands
• Caller ID, Ring detection, Wakeup on ring
• 30ms of system latency tolerance
• Low CPU utilization Uses only 30MHz CPU capacity
• Fully WHQL certified drivers for Microsoft Windows®:
  • Windows NT4
  • Windows 2000
• Complete driver set for Red Hat Linux®.
• Homologated for international use; includes call progress and blacklisting
• Supports both North America and Worldwide modem PTT homologation
• Optimal performance and reliability
• PC99 and PC2001 compliant

Operating Environment

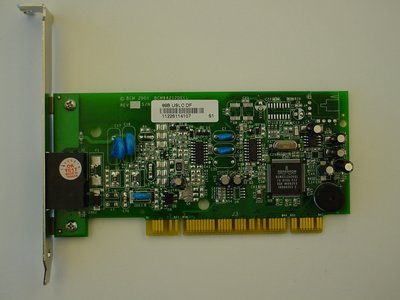

V.92 Data/Fax Modem PCI Card
