GABLE was a prototype geometric algebra system for OGA (Ordinary Geometric Algebra). The prototype was successful, and in PGABLE, we have added tutorial material on PGA (Plane-based Geometric Algebra, also known as Projective Geometric Algebra). In Version 2.0.0, we added support for CGA (Conformal Geometric Algebra).
Two images from the tutorial:
|
|

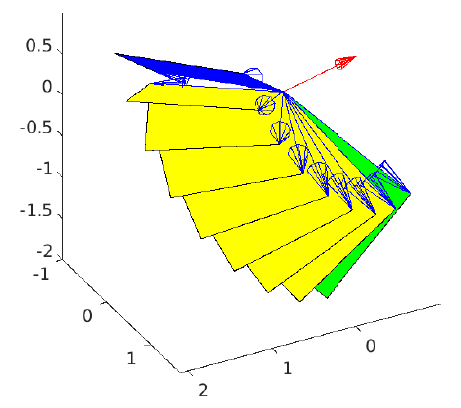

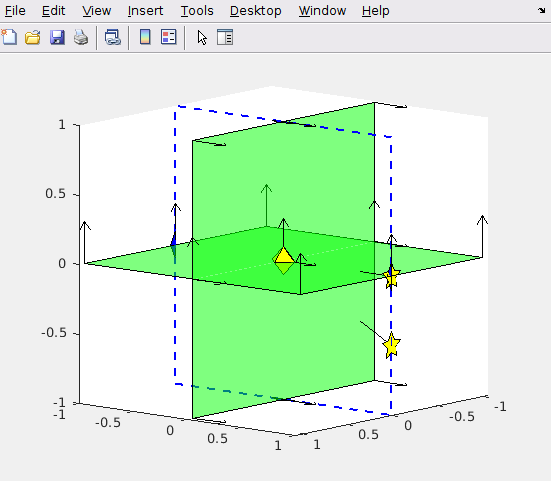

| Interpolation of orientations (OGA) | Vanishing lines and vanishing points (PGA) |
You should install PGABLE as an Add On in Matlab. Alternatively, you can down-load the package as a .zip file.
If you chose to download the zip file, when you unzip the zip file, it will create a folder called 'PGABLE'. You need to add this folder and its subfolders to your Matlab path. To add it to your path, type
>> addpath(genpath('.../PGABLE'))where "..." is the path to PGABLE. Don't type the ">>", which is the Matlab command prompt.
Note: If you're running an older version of Matlab (ie, pre-2024), you will need to download clip.m and place it in your PGABLE folder. (If clicking on the link opens the file rather than opening a download dialog, then you'll need to right-click and select "Download" from the menu.)
If you encounter any problems or have any comments, please email them to us: smann@uwaterloo.ca.
