Intersection of Surfaces via Groebner Basis Computation

> restart;


> eq[1] := x^2 + y^2 + z^2 = 1;


x^2+y^2+z^2 = 1

> eq[2] := x^2 + y^2 + z^2 = 2*x;


x^2+y^2+z^2 = 2*x

> eq[3] := 2*x - 3*y = z;


2*x-3*y = z



Use plots to see the surfaces represented by these equations in 3-dimensional space.



> with(plots):

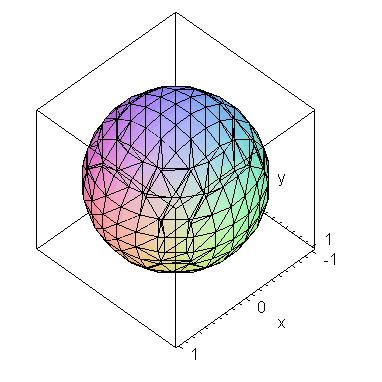

> implicitplot3d(eq[1], x=-1..1, y=-1..1, z=-1..1, axes=boxed);


Plot

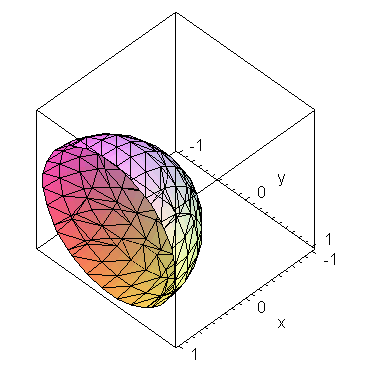

> implicitplot3d(eq[2], x=-1..1, y=-1..1, z=-1..1, axes=boxed);


Plot

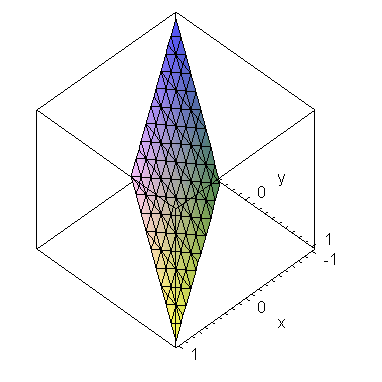

> implicitplot3d(eq[3], x=-1..1, y=-1..1, z=-1..1, axes=boxed);


Plot

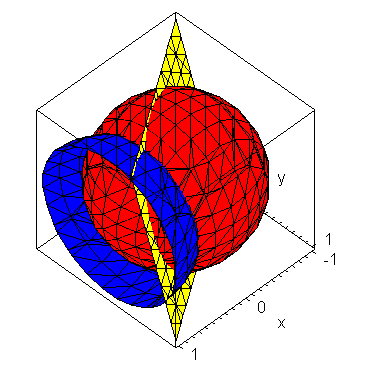

The following command shows all three surfaces in one plot.

By dragging with the mouse, you can rotate the plot to see different views.



> implicitplot3d([eq[1],eq[2],eq[3]], x=-1..1, y=-1..1, z=-1..1,
  axes=boxed, color=[red,blue,yellow]);


Plot

>


Problem:

Find the points of intersection of these three surfaces by using a Groebner basis computation.  Show the Groebner basis that you computed, show the intersection points in explicit form in terms of radicals, and also apply    to show the points in floating-point form.



> F := [seq(lhs(eq[i])-rhs(eq[i]), i = 1..3)];


[x^2+y^2+z^2-1, x^2+y^2+z^2-2*x, 2*x-3*y-z]

> G := Groebner:-Basis(F, plex(x,y,z));


[40*z^2-8*z-23, 3*y+z-1, 2*x-1]

> _EnvExplicit := true;


true

> soln := solve(G, [x,y,z]);


[[x = 1/2, y = 3/10-1/20*26^(1/2), z = 1/10+3/20*26^(1/2)], [x = 1/2, y = 3/10+1/20*26^(1/2), z = 1/10-3/20*26^(1/2)]]
[[x = 1/2, y = 3/10-1/20*26^(1/2), z = 1/10+3/20*26^(1/2)], [x = 1/2, y = 3/10+1/20*26^(1/2), z = 1/10-3/20*26^(1/2)]]


> evalf(soln);


[[x = .5000000000, y = 0.450490243e-1, z = .8648529271], [x = .5000000000, y = .5549509757, z = -.6648529271]]
[[x = .5000000000, y = 0.450490243e-1, z = .8648529271], [x = .5000000000, y = .5549509757, z = -.6648529271]]


>
